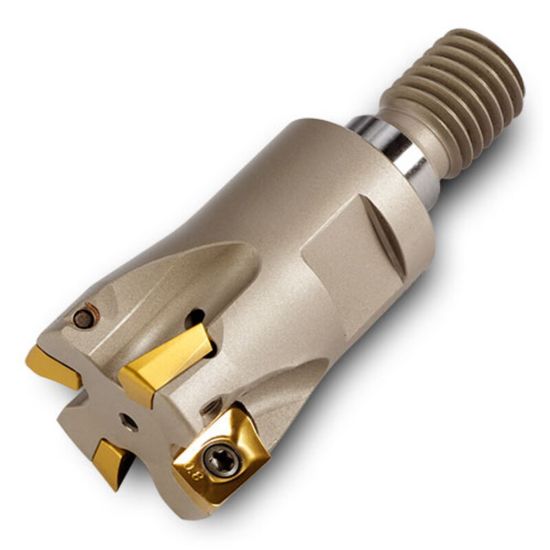

Picture of INGERSOLL 12J1P020035X6R00 Milling Cutter 90.0° 0.787 Screw M10 3 Flute Coolant 0.3543 Max DOC

INGERSOLL 12J1P020035X6R00 Milling Cutter 90.0° 0.787 Screw M10 3 Flute Coolant 0.3543 Max DOC

ANSI: 12J1P020035X6R00

ISO: 12J1P020035X6R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3027503
Delivery date: 3-5 days
$398.53
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Package Size 1
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Cutter Dia 0.7870 19.99MM
Machine Side Connection Size M10
Insert Size Ic 9
Tool Material Steel
Depth Of Cut Max 0.3543
Cut Dia Min 0.7870 19.99MM
Machine Side Connection Type Screw On
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style BO
Max Ramp Angle 7.00°
