  • INGERSOLL 12J1P020030W4R00 Milling Cutter 90.0° 0.787 Cylindrical 0.7874 3 Flute Coolant 0.3543 Max DOC 3.543 OAL

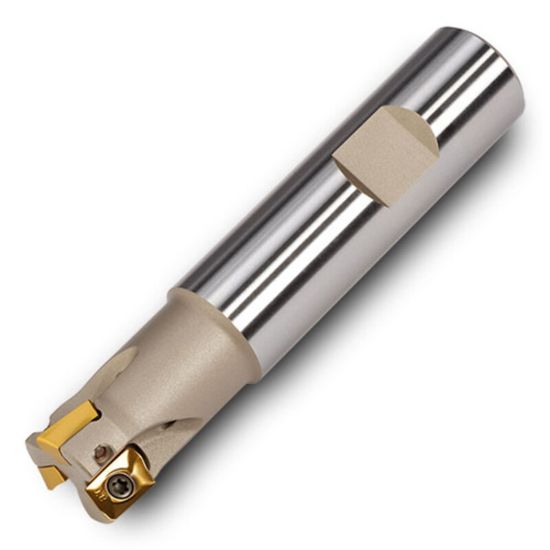

Picture of INGERSOLL 12J1P020030W4R00 Milling Cutter 90.0° 0.787 Cylindrical 0.7874 3 Flute Coolant 0.3543 Max DOC 3.543 OAL

INGERSOLL 12J1P020030W4R00 Milling Cutter 90.0° 0.787 Cylindrical 0.7874 3 Flute Coolant 0.3543 Max DOC 3.543 OAL

ANSI: 12J1P020030W4R00

ISO: 12J1P020030W4R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3027489
Delivery date: 3-5 days
$359.33
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Side Milling, Face Milling, Ramp Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Package Size 1
Insert Type Positive
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Cutter Dia 0.7870 19.99MM
Cut Dia Min 0.7870 19.99MM
Flutes/Inserts 3
Depth Of Cut Max 0.3543
Machine Side Connection Type Cylindrical
Insert Size Ic 9
Overall Len 3.5433 90.00MM
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style BO
Max Ramp Angle 7.00°
