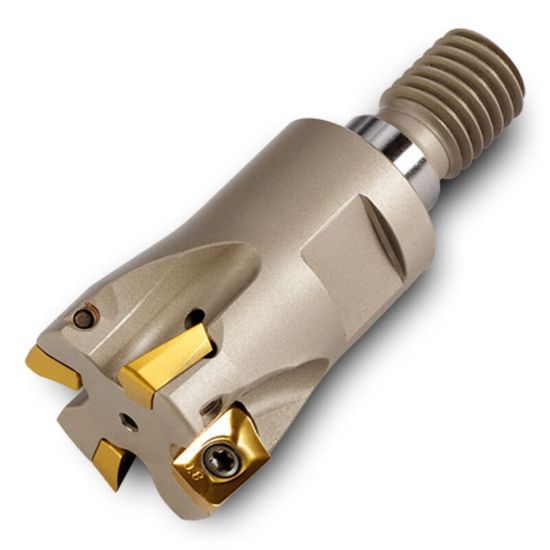

Picture of INGERSOLL 12J1P016035X5R00 Milling Cutter 90.0° 0.630 Screw M08 2 Flute Coolant 0.3543 Max DOC

INGERSOLL 12J1P016035X5R00 Milling Cutter 90.0° 0.630 Screw M08 2 Flute Coolant 0.3543 Max DOC

ANSI: 12J1P016035X5R00

ISO: 12J1P016035X5R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3027502
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Slot Milling, Pocket Milling, Face Milling, Ramp Milling, Side Milling
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Machine Side Connection Size M08
Cut Dia Min 0.6300 16.00MM
Tool Material Steel
Insert Size Ic 9
Cutter Dia 0.6300 16.00MM
Flutes/Inserts 2
Depth Of Cut Max 0.3543
Machine Side Connection Type Screw On
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Insert Style BO
Max Ramp Angle 10.00°
