  • INGERSOLL 12J1P016026W3R00 Milling Cutter 90.0° 0.630 Cylindrical 0.6299 2 Flute Coolant 0.3543 Max DOC 3.346 OAL

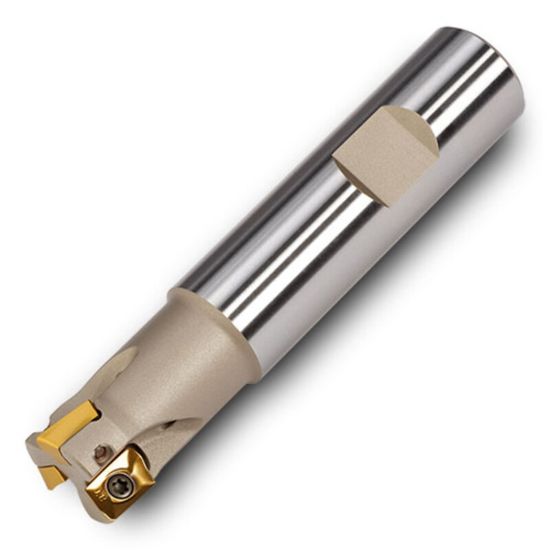

Picture of INGERSOLL 12J1P016026W3R00 Milling Cutter 90.0° 0.630 Cylindrical 0.6299 2 Flute Coolant 0.3543 Max DOC 3.346 OAL

INGERSOLL 12J1P016026W3R00 Milling Cutter 90.0° 0.630 Cylindrical 0.6299 2 Flute Coolant 0.3543 Max DOC 3.346 OAL

ANSI: 12J1P016026W3R00

ISO: 12J1P016026W3R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3027488
Delivery date: 3-5 days
$369.60
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Insert Type Positive
Application Face Milling, Ramp Milling, Slot Milling, Pocket Milling, Side Milling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Cylindrical
Overall Len 3.3465 85.00MM
Insert Size Ic 9
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cut Dia Min 0.6300 16.00MM
Tool Material Steel
Depth Of Cut Max 0.3543
Cutter Dia 0.6300 16.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 10.00°
Coolant Thru Yes
Insert Style BO
