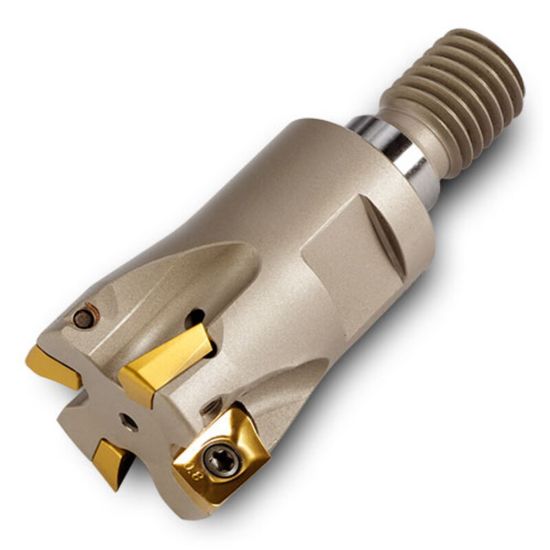

Picture of INGERSOLL 12J1P012030X4R00 Milling Cutter 90.0° 0.472 Screw M06 1 Flute Coolant 0.3543 Max DOC

INGERSOLL 12J1P012030X4R00 Milling Cutter 90.0° 0.472 Screw M06 1 Flute Coolant 0.3543 Max DOC

ANSI: 12J1P012030X4R00

ISO: 12J1P012030X4R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3027500
Delivery date: 3-5 days
$318.27
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Face Milling, Pocket Milling, Ramp Milling, Slot Milling, Side Milling
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Package Size 1
Dimensional Specifications
Machine Side Connection Size M06
Insert Size Ic 9
Cut Dia Min 0.4720 11.99MM
Tool Material Steel
Depth Of Cut Max 0.3543
Machine Side Connection Type Screw On
Cutter Dia 0.4720 11.99MM
Flutes/Inserts 1
Cutting & Machining Properties
Insert Style BO
Coolant Thru Yes
Max Ramp Angle 1.50°
Insert Shape/Cutter Pocket Shape Parallelogram
