  • INGERSOLL 12J1P012020W3R00 Milling Cutter 90.0° 0.472 Cylindrical 0.6299 1 Flute Coolant 0.3543 Max DOC 3.149 OAL

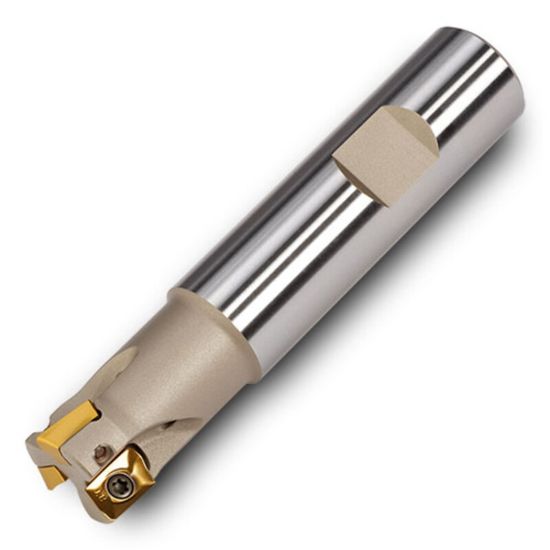

Picture of INGERSOLL 12J1P012020W3R00 Milling Cutter 90.0° 0.472 Cylindrical 0.6299 1 Flute Coolant 0.3543 Max DOC 3.149 OAL

INGERSOLL 12J1P012020W3R00 Milling Cutter 90.0° 0.472 Cylindrical 0.6299 1 Flute Coolant 0.3543 Max DOC 3.149 OAL

ANSI: 12J1P012020W3R00

ISO: 12J1P012020W3R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3027487
Delivery date: 3-5 days
$318.27
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 1
Depth Of Cut Max 0.3543
Machine Side Connection Type Cylindrical
Tool Material Steel
Insert Size Ic 9
Cut Dia Min 0.4720 11.99MM
Cutter Dia 0.4720 11.99MM
Overall Len 3.1496 80.00MM
Cutting & Machining Properties
Max Ramp Angle 1.50°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style BO
Coolant Thru Yes
