  • INGERSOLL 12J1P-1001784R01 Milling Cutter 90.0° 1.000 Weldon 0.7500 3 Flute Coolant 0.35 Max DOC 3.750 OAL

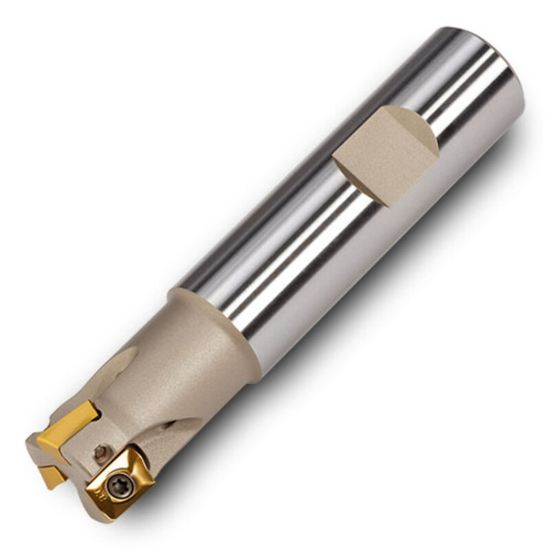

Picture of INGERSOLL 12J1P-1001784R01 Milling Cutter 90.0° 1.000 Weldon 0.7500 3 Flute Coolant 0.35 Max DOC 3.750 OAL

INGERSOLL 12J1P-1001784R01 Milling Cutter 90.0° 1.000 Weldon 0.7500 3 Flute Coolant 0.35 Max DOC 3.750 OAL

ANSI: 12J1P-1001784R01

ISO: 12J1P-1001784R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3028203
Delivery date: 3-5 days
$359.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Ramp Milling, Slot Milling, Face Milling, Pocket Milling, Side Milling
Insert Type Positive
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Package Size 1
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Flutes/Inserts 3
Insert Size Ic 9
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.3500
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Cutting & Machining Properties
Insert Style BO
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 4.40°
