  • INGERSOLL 12J1P-0801784R01 Milling Cutter 90.0° 0.875 Weldon 0.7500 3 Flute Coolant 0.35 Max DOC 3.750 OAL

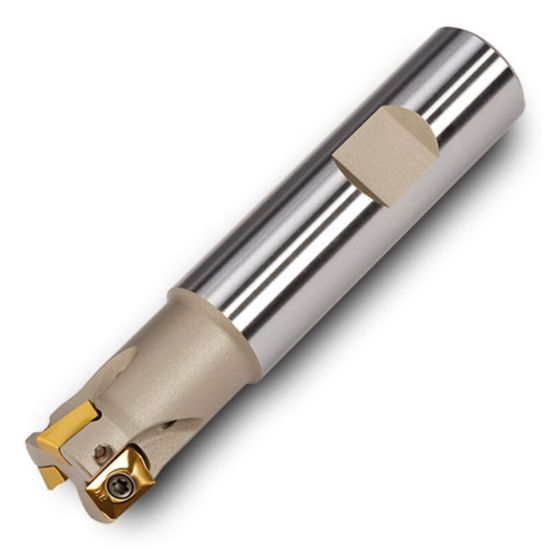

Picture of INGERSOLL 12J1P-0801784R01 Milling Cutter 90.0° 0.875 Weldon 0.7500 3 Flute Coolant 0.35 Max DOC 3.750 OAL

INGERSOLL 12J1P-0801784R01 Milling Cutter 90.0° 0.875 Weldon 0.7500 3 Flute Coolant 0.35 Max DOC 3.750 OAL

ANSI: 12J1P-0801784R01

ISO: 12J1P-0801784R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3028202
Delivery date: 3-5 days
$359.33
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Pocket Milling, Ramp Milling, Slot Milling, Face Milling
Insert/Tool Tool
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Package Size 1
Dimensional Specifications
Flutes/Inserts 3
Depth Of Cut Max 0.3500
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 0.8750 22.23MM - 7/8
Tool Material Steel
Cut Dia Min 0.8750 22.23MM - 7/8
Insert Size Ic 9
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 5.50°
