  • INGERSOLL 12J1P-0702784R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.35 Max DOC 4.750 OAL

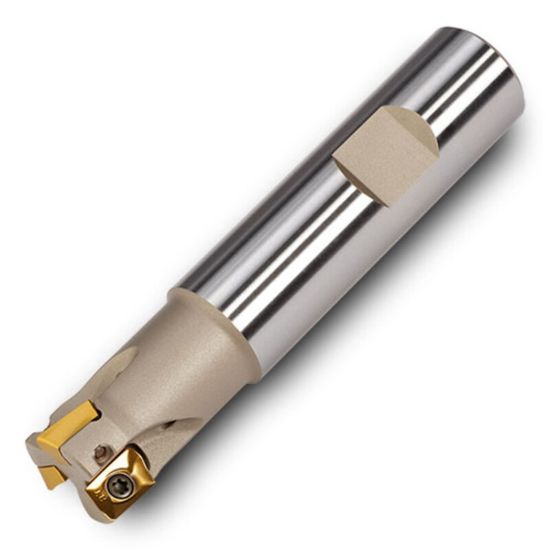

Picture of INGERSOLL 12J1P-0702784R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.35 Max DOC 4.750 OAL

INGERSOLL 12J1P-0702784R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.35 Max DOC 4.750 OAL

ANSI: 12J1P-0702784R01

ISO: 12J1P-0702784R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3028200
Delivery date: 3-5 days
$345.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 9
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Depth Of Cut Max 0.3500
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Weldon
Cut Dia Min 0.7500 19.05MM - 3/4
Overall Len 4.7500 120.65MM
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 7.00°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style BO
