  • INGERSOLL 12J1P-0701784R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.35 Max DOC 3.750 OAL

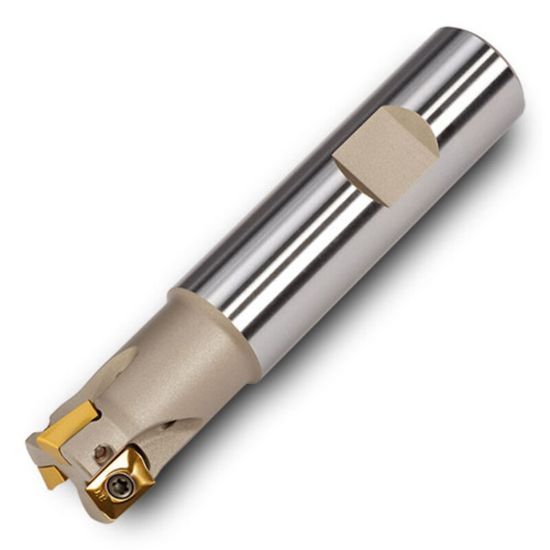

Picture of INGERSOLL 12J1P-0701784R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.35 Max DOC 3.750 OAL

INGERSOLL 12J1P-0701784R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.35 Max DOC 3.750 OAL

ANSI: 12J1P-0701784R01

ISO: 12J1P-0701784R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3028198
Delivery date: 3-5 days
$320.13
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Dimensional Specifications
Overall Len 3.7500 95.25MM
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Tool Material Steel
Insert Size Ic 9
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Depth Of Cut Max 0.3500
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Insert Style BO
Max Ramp Angle 7.00°
