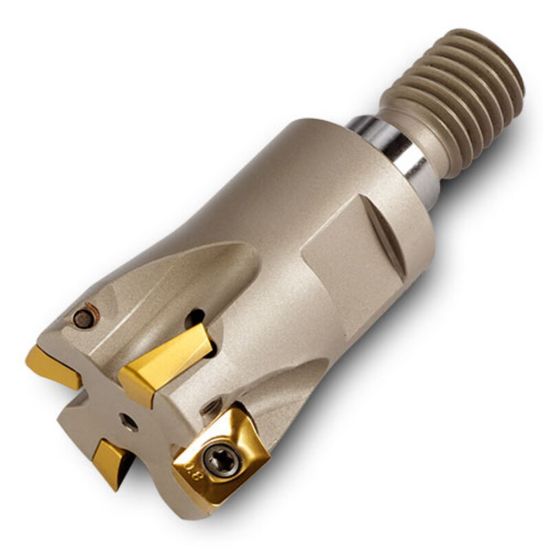

Picture of INGERSOLL 12J1P-07015X6R01 Milling Cutter 90.0° 0.750 Screw M10 3 Flute Coolant

INGERSOLL 12J1P-07015X6R01 Milling Cutter 90.0° 0.750 Screw M10 3 Flute Coolant

ANSI: 12J1P-07015X6R01

ISO: 12J1P-07015X6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3028208
Delivery date: 3-5 days
$344.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Machine Side Connection Type Screw On
Flutes/Inserts 3
Machine Side Connection Size M10
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Insert Size Ic 9
Cut Dia Min 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Style BO
Max Ramp Angle 7.00°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
