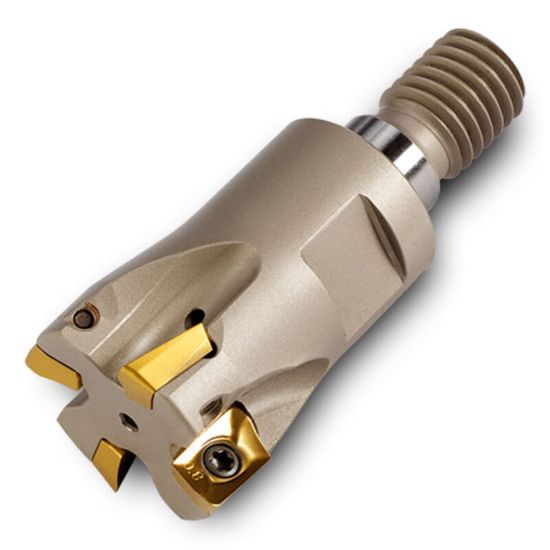

Picture of INGERSOLL 12J1P-06015X5R01 Milling Cutter 90.0° 0.625 Screw M08 2 Flute Coolant

INGERSOLL 12J1P-06015X5R01 Milling Cutter 90.0° 0.625 Screw M08 2 Flute Coolant

ANSI: 12J1P-06015X5R01

ISO: 12J1P-06015X5R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3028207
Delivery date: 3-5 days
$298.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Insert/Tool Tool
Application Side Milling, Ramp Milling, Slot Milling, Pocket Milling, Face Milling
Made In USA No
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Flutes/Inserts 2
Tool Material Steel
Cutter Dia 0.6250 15.88MM - 5/8
Cut Dia Min 0.6250 15.88MM - 5/8
Machine Side Connection Type Screw On
Machine Side Connection Size M08
Insert Size Ic 9
Cutting & Machining Properties
Coolant Thru Yes
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 10.00°
