  • INGERSOLL 12J1P-0501379R01 Milling Cutter 90.0° 0.500 Cylindrical 0.6250 1 Flute Coolant 0.35 Max DOC 3.250 OAL

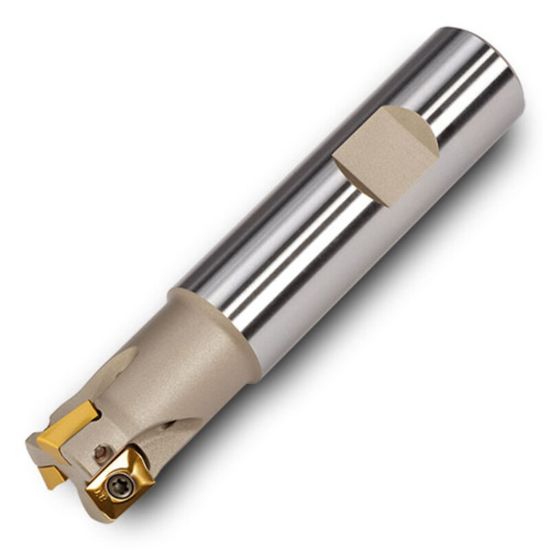

Picture of INGERSOLL 12J1P-0501379R01 Milling Cutter 90.0° 0.500 Cylindrical 0.6250 1 Flute Coolant 0.35 Max DOC 3.250 OAL

INGERSOLL 12J1P-0501379R01 Milling Cutter 90.0° 0.500 Cylindrical 0.6250 1 Flute Coolant 0.35 Max DOC 3.250 OAL

ANSI: 12J1P-0501379R01

ISO: 12J1P-0501379R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3028196
Delivery date: 3-5 days
$266.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Face Milling, Slot Milling, Ramp Milling, Side Milling, Pocket Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 0.6250 15.88MM
Overall Len 3.2500 82.55MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Depth Of Cut Max 0.3500
Insert Size Ic 9
Flutes/Inserts 1
Machine Side Connection Type Cylindrical
Cutter Dia 0.5000 12.70MM - 1/2
Cut Dia Min 0.5000 12.70MM - 1/2
Tool Material Steel
Cutting & Machining Properties
Insert Style BO
Coolant Thru Yes
Max Ramp Angle 1.50°
Insert Shape/Cutter Pocket Shape Parallelogram
