  • INGERSOLL 12J1M-0501079R01 Milling Cutter 90.0° 0.500 Cylindrical 0.6250 1 Flute 0.3 Max DOC 3.000 OAL

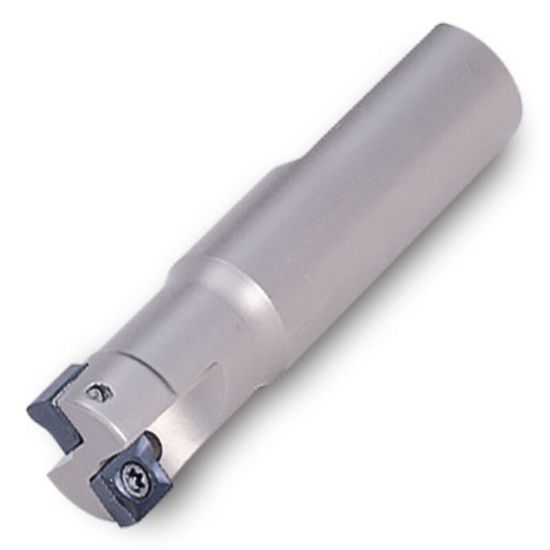

Picture of INGERSOLL 12J1M-0501079R01 Milling Cutter 90.0° 0.500 Cylindrical 0.6250 1 Flute 0.3 Max DOC 3.000 OAL

INGERSOLL 12J1M-0501079R01 Milling Cutter 90.0° 0.500 Cylindrical 0.6250 1 Flute 0.3 Max DOC 3.000 OAL

ANSI: 12J1M-0501079R01

ISO: 12J1M-0501079R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3003947
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Application Side Milling, Ramp Milling, Slot Milling, Face Milling, Pocket Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 8
Depth Of Cut Max 0.3000
Cutter Dia 0.5000 12.70MM - 1/2
Machine Side Connection Type Cylindrical
Overall Len 3.0000 76.20MM
Flutes/Inserts 1
Machine Side Connection Size 0.6250 15.88MM
Cut Dia Min 0.5000 12.70MM - 1/2
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
Coolant Thru No
Max Ramp Angle 1.60°
