  • INGERSOLL 12J1M-0300778R01 Milling Cutter 90.0° 0.375 Cylindrical 0.5000 1 Flute 0.3 Max DOC 2.500 OAL

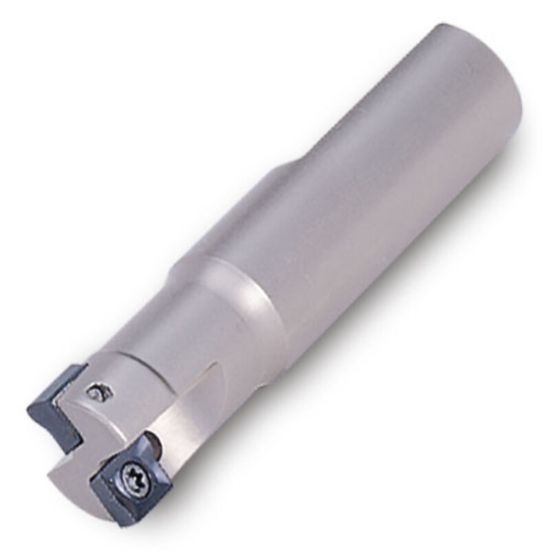

Picture of INGERSOLL 12J1M-0300778R01 Milling Cutter 90.0° 0.375 Cylindrical 0.5000 1 Flute 0.3 Max DOC 2.500 OAL

INGERSOLL 12J1M-0300778R01 Milling Cutter 90.0° 0.375 Cylindrical 0.5000 1 Flute 0.3 Max DOC 2.500 OAL

ANSI: 12J1M-0300778R01

ISO: 12J1M-0300778R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3003946
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 1
Machine Side Connection Size 0.5000 12.70MM
Overall Len 2.5000 63.50MM
Cutter Dia 0.3750 9.53MM - 3/8
Cut Dia Min 0.3750 9.53MM - 3/8
Machine Side Connection Type Cylindrical
Insert Size Ic 8
Depth Of Cut Max 0.3000
Tool Material Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Insert Style AP
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
