  • INGERSOLL 12J1G040050W6R00 Milling Cutter 90.0° 1.575 Cylindrical 1.2598 3 Flute Coolant 0.6299 Max DOC 4.330 OAL

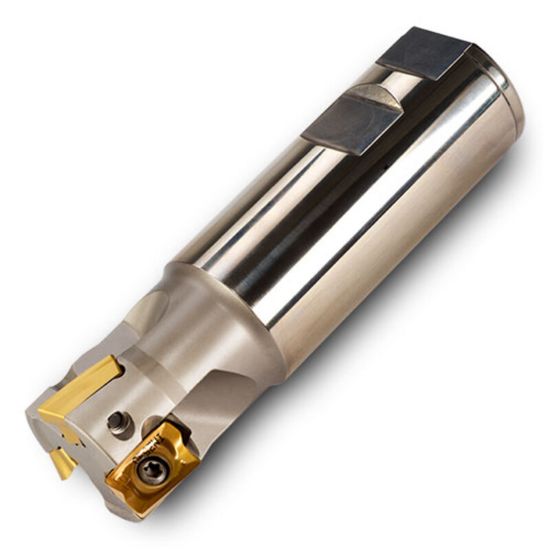

Picture of INGERSOLL 12J1G040050W6R00 Milling Cutter 90.0° 1.575 Cylindrical 1.2598 3 Flute Coolant 0.6299 Max DOC 4.330 OAL

INGERSOLL 12J1G040050W6R00 Milling Cutter 90.0° 1.575 Cylindrical 1.2598 3 Flute Coolant 0.6299 Max DOC 4.330 OAL

ANSI: 12J1G040050W6R00

ISO: 12J1G040050W6R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3027821
Delivery date: 3-5 days
$507.73
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.2598 32.00MM
Cut Dia Min 1.5750 40.01MM
Flutes/Inserts 3
Insert Size Ic 17
Depth Of Cut Max 0.6299
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 1.2598 32.00MM
Overall Len 4.3307 110.00MM
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 5.00°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
