  • INGERSOLL 12J1G032120W6R00 Milling Cutter 90.0° 1.260 Cylindrical 1.2598 2 Flute Coolant 0.6299 Max DOC 7.283 OAL

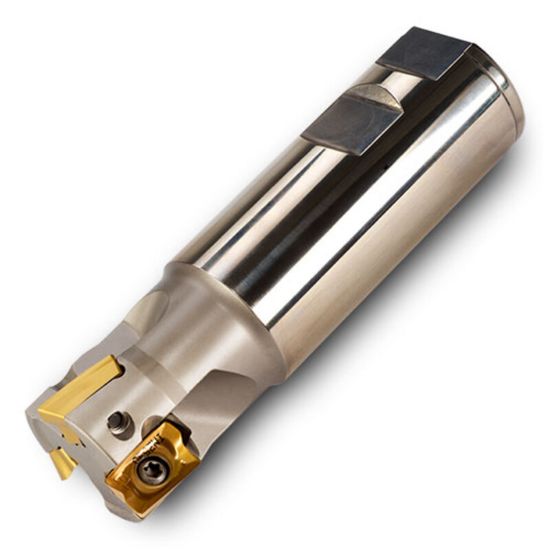

Picture of INGERSOLL 12J1G032120W6R00 Milling Cutter 90.0° 1.260 Cylindrical 1.2598 2 Flute Coolant 0.6299 Max DOC 7.283 OAL

INGERSOLL 12J1G032120W6R00 Milling Cutter 90.0° 1.260 Cylindrical 1.2598 2 Flute Coolant 0.6299 Max DOC 7.283 OAL

ANSI: 12J1G032120W6R00

ISO: 12J1G032120W6R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3027820
Delivery date: 3-5 days
$473.20
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Side Milling, Slot Milling, Face Milling
Made In USA No
Shipping State Illinois
Package Size 1
Insert Type Positive
Dimensional Specifications
Cut Dia Min 1.2600 32.00MM
Tool Material Steel
Machine Side Connection Size 1.2598 32.00MM
Overall Len 7.2835 185.00MM
Flutes/Inserts 2
Insert Size Ic 17
Cutter Dia 1.2600 32.00MM
Shank/Pilot Dia 1.2598 32.00MM
Depth Of Cut Max 0.6299
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Max Ramp Angle 9.00°
