  • INGERSOLL 12J1G025040W5R00 Milling Cutter 90.0° 0.984 Cylindrical 0.9843 2 Flute Coolant 0.6299 Max DOC 3.937 OAL

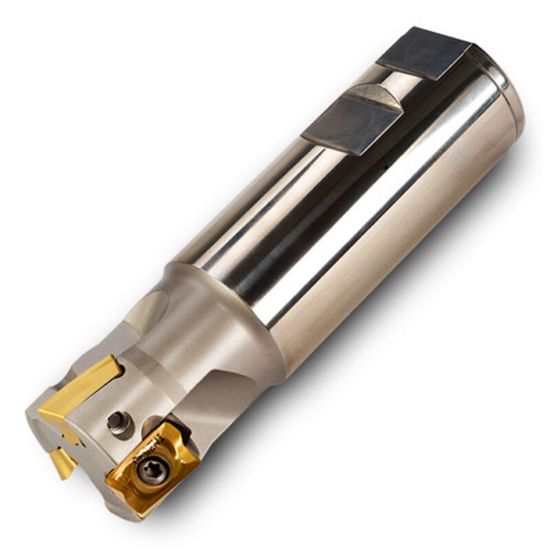

Picture of INGERSOLL 12J1G025040W5R00 Milling Cutter 90.0° 0.984 Cylindrical 0.9843 2 Flute Coolant 0.6299 Max DOC 3.937 OAL

INGERSOLL 12J1G025040W5R00 Milling Cutter 90.0° 0.984 Cylindrical 0.9843 2 Flute Coolant 0.6299 Max DOC 3.937 OAL

ANSI: 12J1G025040W5R00

ISO: 12J1G025040W5R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3027818
Delivery date: 3-5 days
$355.60
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Pocket Milling, Ramp Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Dimensional Specifications
Cut Dia Min 0.9840 24.99MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Overall Len 3.9370 100.00MM
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Cylindrical
Insert Size Ic 17
Depth Of Cut Max 0.6299
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 2
Cutting & Machining Properties
Insert Style AO
Coolant Thru Yes
Max Ramp Angle 5.00°
Insert Shape/Cutter Pocket Shape Parallelogram
