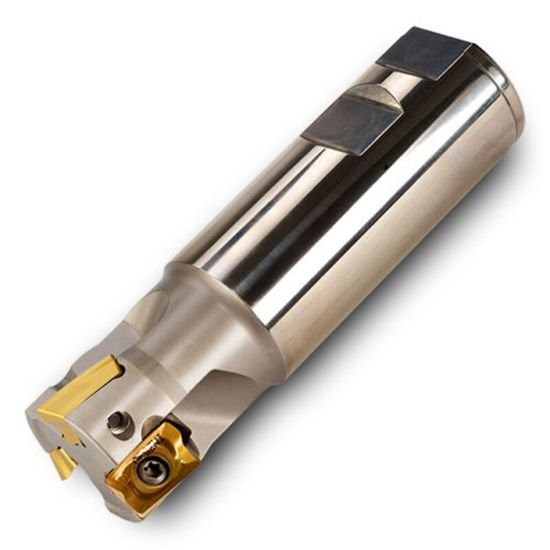

Picture of Ingersoll 12J1G-2001781R01 Milling Cutter 90.0° 2.000 Cylindrical1.2500 5 Flute 0.63 Max DOC 4.500 OAL

Ingersoll 12J1G-2001781R01 Milling Cutter 90.0° 2.000 Cylindrical1.2500 5 Flute 0.63 Max DOC 4.500 OAL

Part Number: ING3018643 ISO: 12J1G-2001781R01 ANSI:12J1G-2001781R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1008832
Vendor: Sussex Tool and Supply
$565.25
INGERSOLL 3018643 Parallelogram 90.0°, End Mill End Mill Cylindrical 1.2500 Positive 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 1.2500 31.75MM
Overall Length 4.5000 114.30MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 5
Tool Dia 2.0000 50.80MM
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 17
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 0.6300
Cutting Edge Angle 90.0°
Max Ramp Angle 4.00°
