  • INGERSOLL 12J1G-1205281R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.63 Max DOC 8.000 OAL

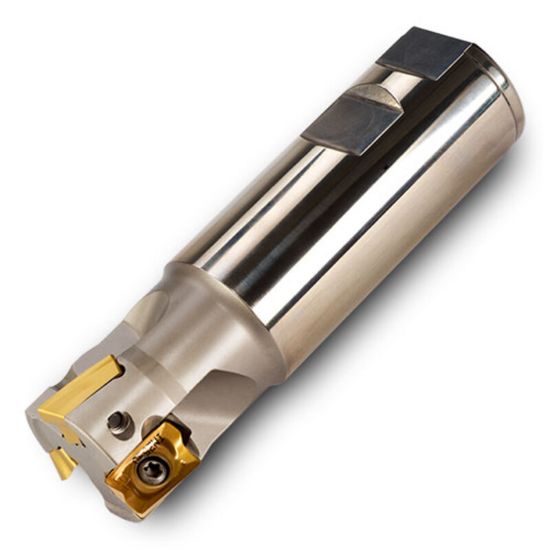

Picture of INGERSOLL 12J1G-1205281R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.63 Max DOC 8.000 OAL

INGERSOLL 12J1G-1205281R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.63 Max DOC 8.000 OAL

ANSI: 12J1G-1205281R01

ISO: 12J1G-1205281R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018655
Delivery date: 3-5 days
$386.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Insert Application Semi Finishing, Roughing
Package Size 1
Dimensional Specifications
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Insert Size Ic 17
Machine Side Connection Size 1.2500 31.75MM
Tool Material Steel
Overall Len 8.0000 203.20MM
Cut Dia Min 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.6300
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Cutting & Machining Properties
Max Ramp Angle 9.00°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Coolant Thru Yes
