  • INGERSOLL 12J1G-1204281R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.63 Max DOC 6.500 OAL

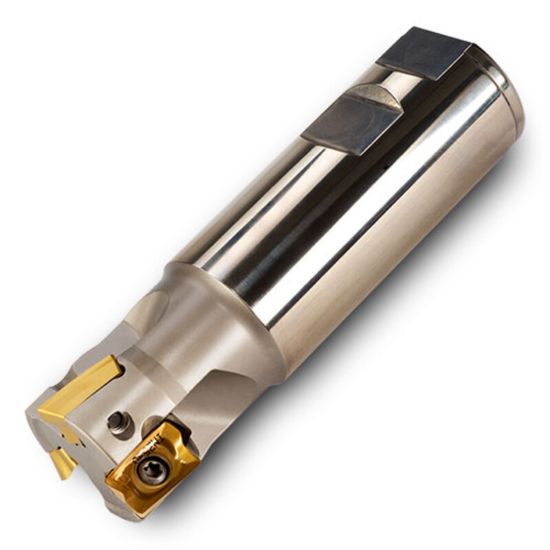

Picture of INGERSOLL 12J1G-1204281R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.63 Max DOC 6.500 OAL

INGERSOLL 12J1G-1204281R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.63 Max DOC 6.500 OAL

ANSI: 12J1G-1204281R01

ISO: 12J1G-1204281R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018654
Delivery date: 3-5 days
$372.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ramp Milling, Slot Milling, Side Milling, Pocket Milling, Face Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Insert Size Ic 17
Depth Of Cut Max 0.6300
Cut Dia Min 1.2500 31.75MM - 1-1/4
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Overall Len 6.5000 165.10MM
Cutting & Machining Properties
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Max Ramp Angle 9.00°
