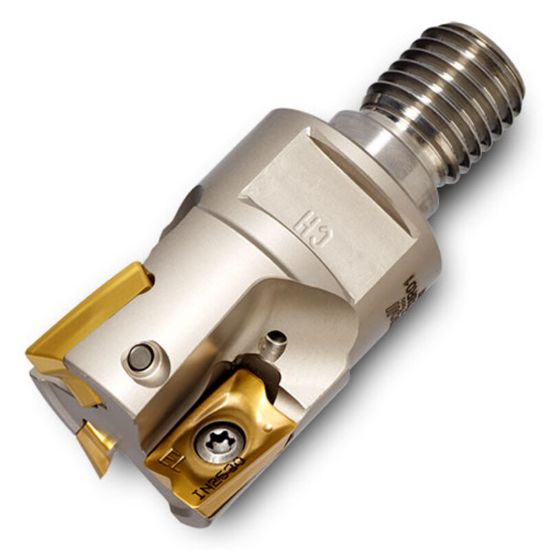

Picture of INGERSOLL 12J1G-12017X8R01 Milling Cutter 90.0° 1.250 Screw M16 3 Flute Coolant 0.63 Max DOC

INGERSOLL 12J1G-12017X8R01 Milling Cutter 90.0° 1.250 Screw M16 3 Flute Coolant 0.63 Max DOC

ANSI: 12J1G-12017X8R01

ISO: 12J1G-12017X8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3023299
Delivery date: 3-5 days
$375.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 3
Depth Of Cut Max 0.6300
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Screw On
Cut Dia Min 1.2500 31.75MM - 1-1/4
Insert Size Ic 17
Machine Side Connection Size M16
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 9.00°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
