  • INGERSOLL 12J1G-1201681R02 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.63 Max DOC 4.500 OAL

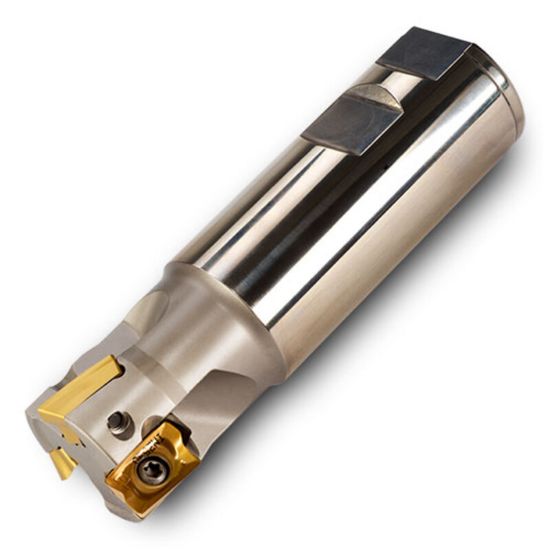

Picture of INGERSOLL 12J1G-1201681R02 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.63 Max DOC 4.500 OAL

INGERSOLL 12J1G-1201681R02 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.63 Max DOC 4.500 OAL

ANSI: 12J1G-1201681R02

ISO: 12J1G-1201681R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018663
Delivery date: 3-5 days
$362.13

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Insert Application Semi Finishing, Roughing
Package Size 1
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 17
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.6300
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 1.2500 31.75MM - 1-1/4
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Coolant Thru Yes
Max Ramp Angle 9.00°
