  • INGERSOLL 12J1G-1201681R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute 0.63 Max DOC 4.500 OAL

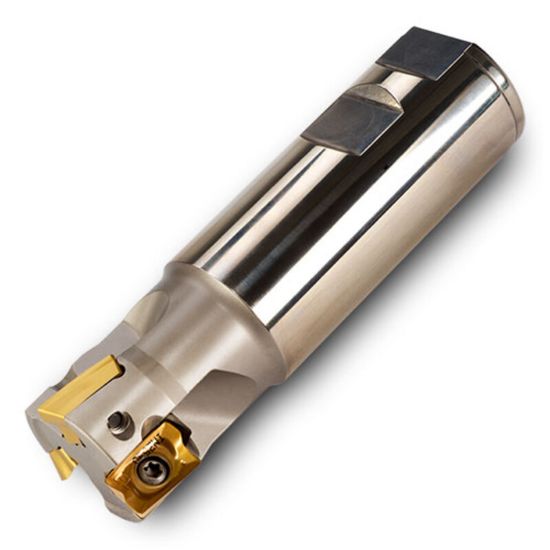

Picture of INGERSOLL 12J1G-1201681R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute 0.63 Max DOC 4.500 OAL

INGERSOLL 12J1G-1201681R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute 0.63 Max DOC 4.500 OAL

ANSI: 12J1G-1201681R01

ISO: 12J1G-1201681R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018639
Delivery date: 3-5 days
$344.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Slot Milling, Ramp Milling, Side Milling
Shipping State Illinois
Insert Type Positive
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Dimensional Specifications
Cutter Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 17
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Flutes/Inserts 3
Depth Of Cut Max 0.6300
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Max Ramp Angle 9.00°
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
