  • INGERSOLL 12J1G-1008080R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.63 Max DOC 10.00 OAL

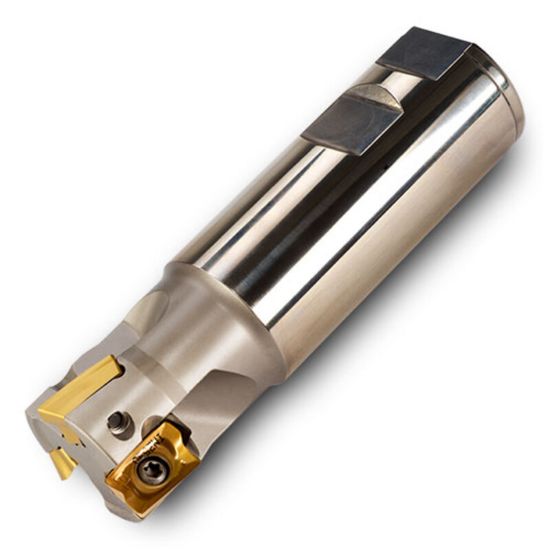

Picture of INGERSOLL 12J1G-1008080R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.63 Max DOC 10.00 OAL

INGERSOLL 12J1G-1008080R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.63 Max DOC 10.00 OAL

ANSI: 12J1G-1008080R01

ISO: 12J1G-1008080R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018649
Delivery date: 3-5 days
$344.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Slot Milling, Pocket Milling, Ramp Milling, Side Milling, Face Milling
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.6300
Cutter Dia 1.0000 25.40MM
Flutes/Inserts 2
Insert Size Ic 17
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Machine Side Connection Type Cylindrical
Overall Len 10.0000 254.00MM
Cutting & Machining Properties
Max Ramp Angle 5.00°
Coolant Thru Yes
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
