  • INGERSOLL 12J1G-1006080R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.63 Max DOC 8.000 OAL

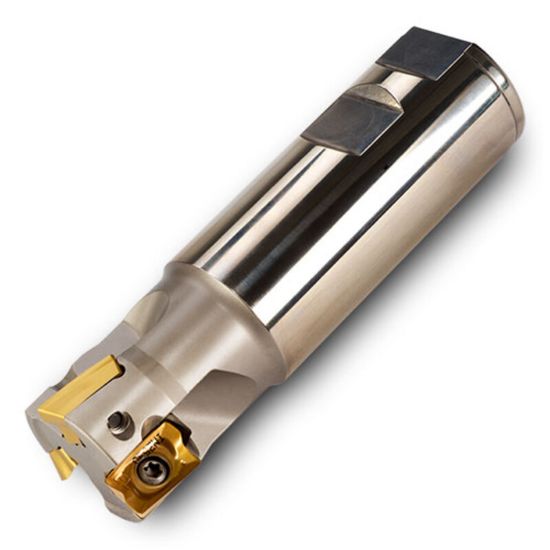

Picture of INGERSOLL 12J1G-1006080R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.63 Max DOC 8.000 OAL

INGERSOLL 12J1G-1006080R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.63 Max DOC 8.000 OAL

ANSI: 12J1G-1006080R01

ISO: 12J1G-1006080R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018648
Delivery date: 3-5 days
$331.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Depth Of Cut Max 0.6300
Flutes/Inserts 2
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Insert Size Ic 17
Overall Len 8.0000 203.20MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Max Ramp Angle 5.00°
