  • INGERSOLL 12J1G-1003780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.63 Max DOC 6.000 OAL

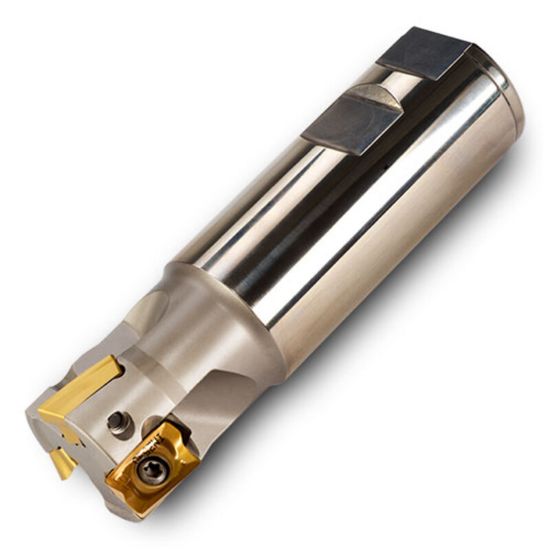

Picture of INGERSOLL 12J1G-1003780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.63 Max DOC 6.000 OAL

INGERSOLL 12J1G-1003780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.63 Max DOC 6.000 OAL

ANSI: 12J1G-1003780R01

ISO: 12J1G-1003780R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018647
Delivery date: 3-5 days
$313.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Insert Type Positive
Insert/Tool Tool
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Overall Len 6.0000 152.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Depth Of Cut Max 0.6300
Flutes/Inserts 2
Insert Size Ic 17
Cutter Dia 1.0000 25.40MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Max Ramp Angle 5.00°
Coolant Thru Yes
