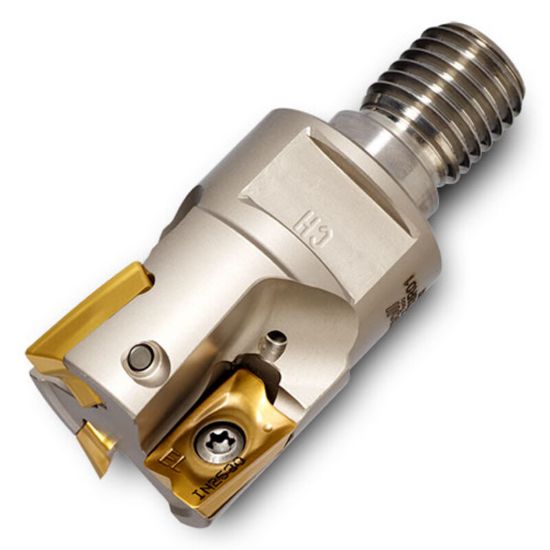

Picture of INGERSOLL 12J1G-10015X7R01 Milling Cutter 90.0° 1.000 Screw M12 2 Flute Coolant 0.63 Max DOC

INGERSOLL 12J1G-10015X7R01 Milling Cutter 90.0° 1.000 Screw M12 2 Flute Coolant 0.63 Max DOC

ANSI: 12J1G-10015X7R01

ISO: 12J1G-10015X7R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3023159
Delivery date: 3-5 days
$318.27

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Application Pocket Milling, Face Milling, Side Milling, Ramp Milling, Slot Milling
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Dimensional Specifications
Cut Dia Min 1.0000 25.40MM
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Depth Of Cut Max 0.6300
Flutes/Inserts 2
Insert Size Ic 17
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 5.00°
Insert Style AO
