  • INGERSOLL 12J1G-0701284R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 1 Flute Coolant 0.63 Max DOC 3.750 OAL

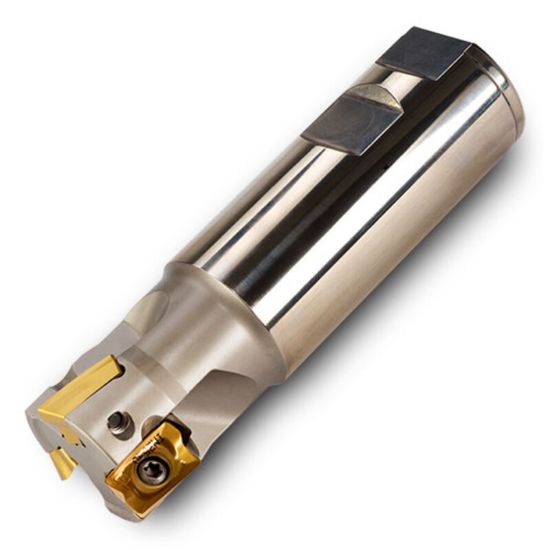

Picture of INGERSOLL 12J1G-0701284R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 1 Flute Coolant 0.63 Max DOC 3.750 OAL

INGERSOLL 12J1G-0701284R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 1 Flute Coolant 0.63 Max DOC 3.750 OAL

ANSI: 12J1G-0701284R01

ISO: 12J1G-0701284R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018637
Delivery date: 3-5 days
$249.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Insert/Tool Tool
Insert Type Positive
Application Face Milling, Ramp Milling, Slot Milling, Side Milling, Pocket Milling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.6300
Flutes/Inserts 1
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 17
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 8.00°
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
