  • INGERSOLL 12J1F-0703084R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.44 Max DOC 5.000 OAL

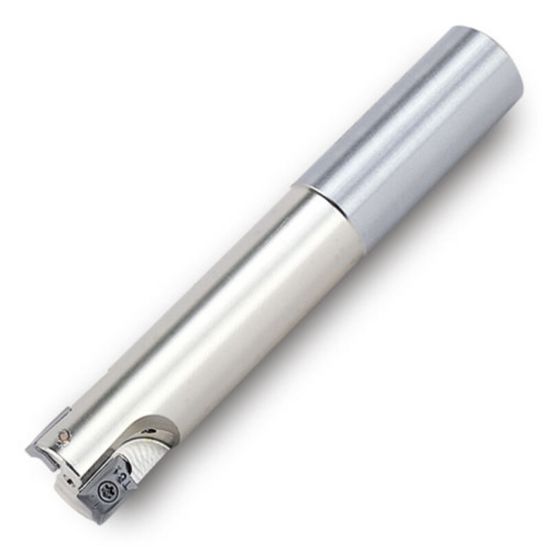

Picture of INGERSOLL 12J1F-0703084R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.44 Max DOC 5.000 OAL

INGERSOLL 12J1F-0703084R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 2 Flute Coolant 0.44 Max DOC 5.000 OAL

ANSI: 12J1F-0703084R01

ISO: 12J1F-0703084R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3012720
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Slot Milling, Face Milling, Pocket Milling
Insert Type Positive
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Overall Len 5.0000 127.00MM
Insert Size Ic 11
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Depth Of Cut Max 0.4400
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Tool Material Steel
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Style AO
Coolant Thru Yes
Max Ramp Angle 5.60°
Insert Shape/Cutter Pocket Shape Parallelogram
