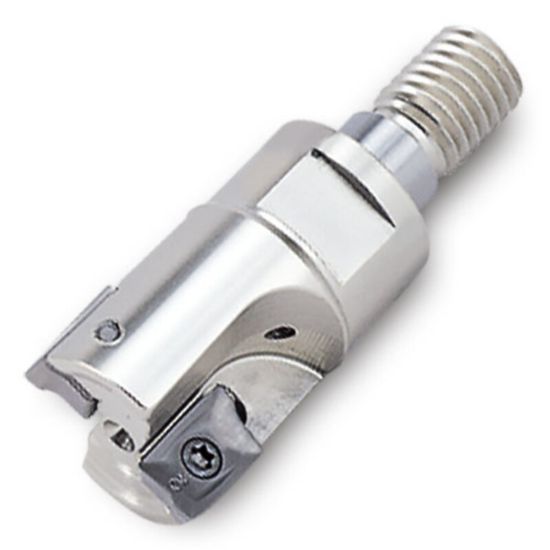

Picture of INGERSOLL 12J1F-07015X6R01 Milling Cutter 90.0° 0.750 Screw M10 2 Flute Coolant 0.47 Max DOC

INGERSOLL 12J1F-07015X6R01 Milling Cutter 90.0° 0.750 Screw M10 2 Flute Coolant 0.47 Max DOC

ANSI: 12J1F-07015X6R01

ISO: 12J1F-07015X6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3012746
Delivery date: 3-5 days
$280.93
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size M10
Flutes/Inserts 2
Insert Size Ic 11
Cut Dia Min 0.7500 19.05MM - 3/4
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Type Screw On
Depth Of Cut Max 0.4700
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Coolant Thru Yes
Max Ramp Angle 5.50°
