  • INGERSOLL 12J1E-1204281R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.66 Max DOC 6.500 OAL

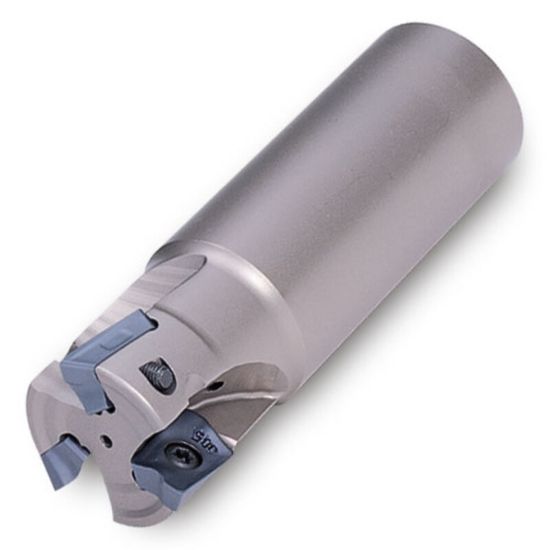

Picture of INGERSOLL 12J1E-1204281R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.66 Max DOC 6.500 OAL

INGERSOLL 12J1E-1204281R01 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.66 Max DOC 6.500 OAL

ANSI: 12J1E-1204281R01

ISO: 12J1E-1204281R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3017394
Delivery date: 3-5 days
$402.27

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ramp Milling, Slot Milling, Face Milling, Pocket Milling, Side Milling
Insert Application Semi Finishing, Roughing
Package Size 1
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Insert Size Ic 18
Depth Of Cut Max 0.6600
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Overall Len 6.5000 165.10MM
Cut Dia Min 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 4.10°
Coolant Thru Yes
Insert Style AO
