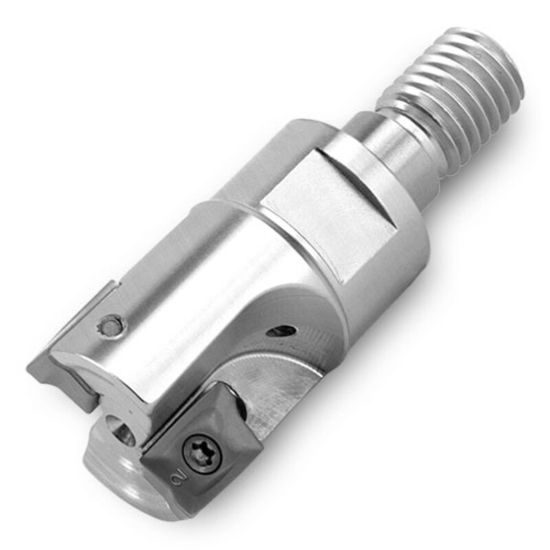

Picture of INGERSOLL 12J1E-12017X8R01 Milling Cutter 90.0° 1.250 Screw M16 3 Flute Coolant 0.66 Max DOC

INGERSOLL 12J1E-12017X8R01 Milling Cutter 90.0° 1.250 Screw M16 3 Flute Coolant 0.66 Max DOC

ANSI: 12J1E-12017X8R01

ISO: 12J1E-12017X8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3023300
Delivery date: 3-5 days
$345.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Application Face Milling, Ramp Milling, Slot Milling, Side Milling, Pocket Milling
Package Size 1
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 18
Machine Side Connection Size M16
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Screw On
Flutes/Inserts 3
Cutter Dia 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.6600
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
