  • INGERSOLL 12J1E-1005780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute 0.66 Max DOC 8.000 OAL

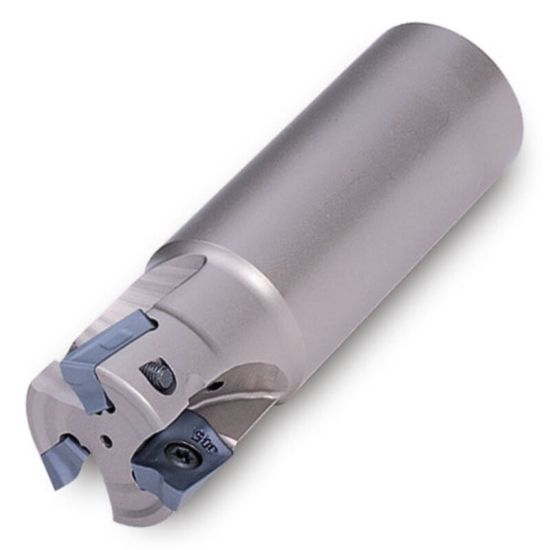

Picture of INGERSOLL 12J1E-1005780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute 0.66 Max DOC 8.000 OAL

INGERSOLL 12J1E-1005780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute 0.66 Max DOC 8.000 OAL

ANSI: 12J1E-1005780R01

ISO: 12J1E-1005780R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3013156
Delivery date: 3-5 days
$406.93

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Pocket Milling, Ramp Milling, Side Milling, Slot Milling
Insert Application Semi Finishing, Roughing
Package Size 1
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Overall Len 8.0000 203.20MM
Flutes/Inserts 2
Insert Size Ic 18
Cutter Dia 1.0000 25.40MM
Depth Of Cut Max 0.6600
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Coolant Thru No
