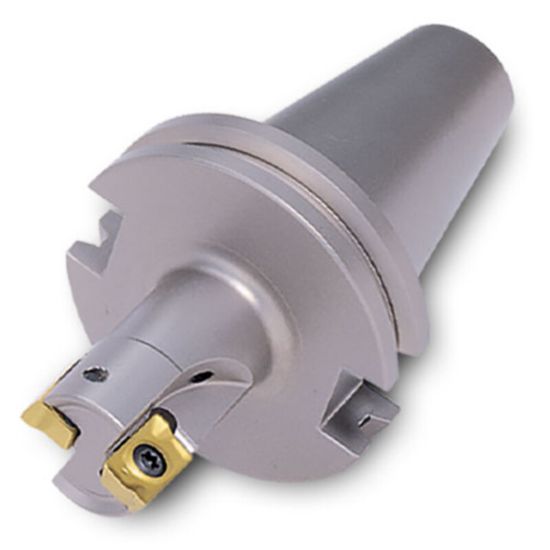

Picture of INGERSOLL 12J1E-1004029R01 Milling Cutter 90.0° 1.000 CAT40 2 Flute Coolant 0.66 Max DOC 6.690 OAL

INGERSOLL 12J1E-1004029R01 Milling Cutter 90.0° 1.000 CAT40 2 Flute Coolant 0.66 Max DOC 6.690 OAL

ANSI: 12J1E-1004029R01

ISO: 12J1E-1004029R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3016768
Delivery date: 3-5 days
$561.87

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Ramp Milling, Slot Milling, Face Milling, Side Milling
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.6600
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Overall Len 6.6900 169.93MM
Machine Side Connection Type CAT
Machine Side Connection Size 1.5748 40.00MM
Insert Size Ic 18
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Insert Style AO
Max Ramp Angle 6.00°
