  • INGERSOLL 12J1E-0901780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.66 Max DOC 4.000 OAL

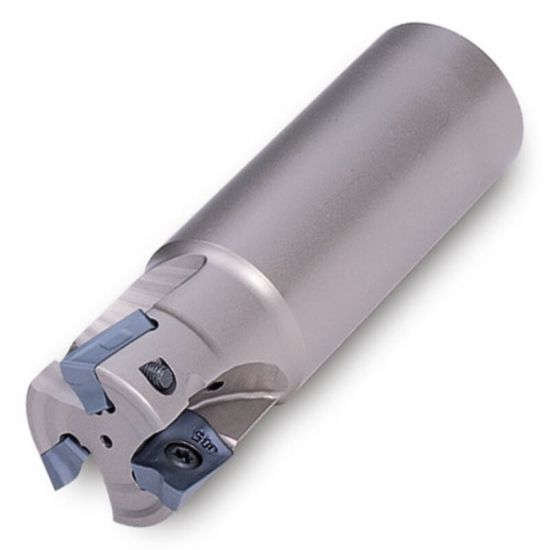

Picture of INGERSOLL 12J1E-0901780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.66 Max DOC 4.000 OAL

INGERSOLL 12J1E-0901780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.66 Max DOC 4.000 OAL

ANSI: 12J1E-0901780R01

ISO: 12J1E-0901780R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3040332
Delivery date: 3-5 days
$312.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.6600
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 18
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Min 0.9700 24.64MM
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Max Ramp Angle 6.20°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Coolant Thru Yes
