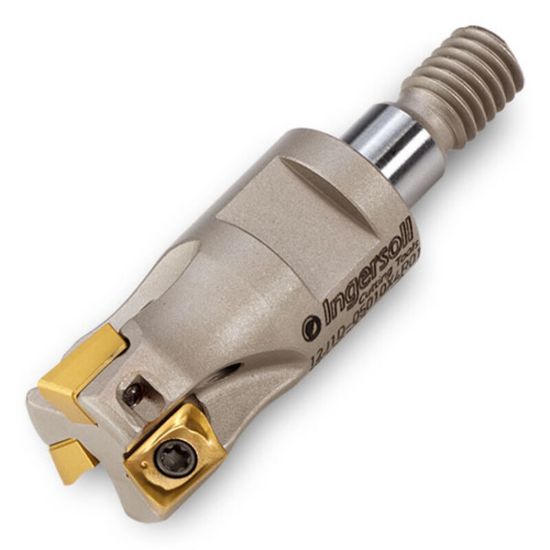

Picture of INGERSOLL 12J1D-15017X8R01 Milling Cutter 90.0° 1.500 Screw M16 9 Flute 0.22 Max DOC

INGERSOLL 12J1D-15017X8R01 Milling Cutter 90.0° 1.500 Screw M16 9 Flute 0.22 Max DOC

ANSI: 12J1D-15017X8R01

ISO: 12J1D-15017X8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018985
Delivery date: 3-5 days
$404.13
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Slot Milling, Face Milling, Ramp Milling, Side Milling
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Dimensional Specifications
Tool Material Steel
Depth Of Cut Max 0.2200
Machine Side Connection Type Screw On
Flutes/Inserts 9
Machine Side Connection Size M16
Cut Dia Min 1.5000 38.10MM - 1-1/2
Cutter Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 6
Cutting & Machining Properties
Max Ramp Angle 1.20°
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
