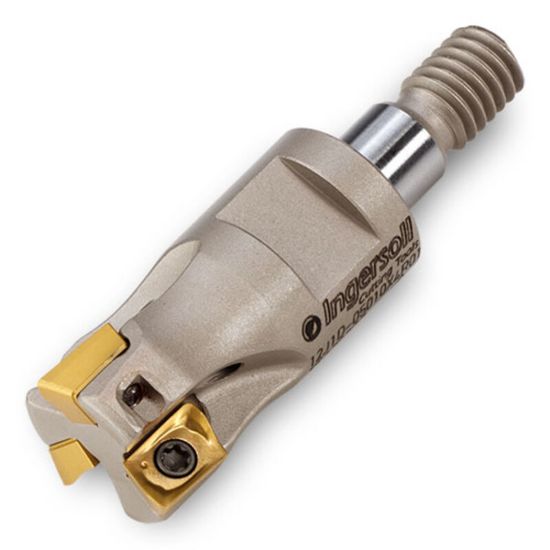

Picture of INGERSOLL 12J1D-12017X8R01 Milling Cutter 90.0° 1.250 Screw M16 8 Flute 0.22 Max DOC

INGERSOLL 12J1D-12017X8R01 Milling Cutter 90.0° 1.250 Screw M16 8 Flute 0.22 Max DOC

ANSI: 12J1D-12017X8R01

ISO: 12J1D-12017X8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018984
Delivery date: 3-5 days
$384.53

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.2200
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Screw On
Machine Side Connection Size M16
Tool Material Steel
Insert Size Ic 6
Cut Dia Min 1.2500 31.75MM - 1-1/4
Flutes/Inserts 8
Cutting & Machining Properties
Max Ramp Angle 1.60°
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
