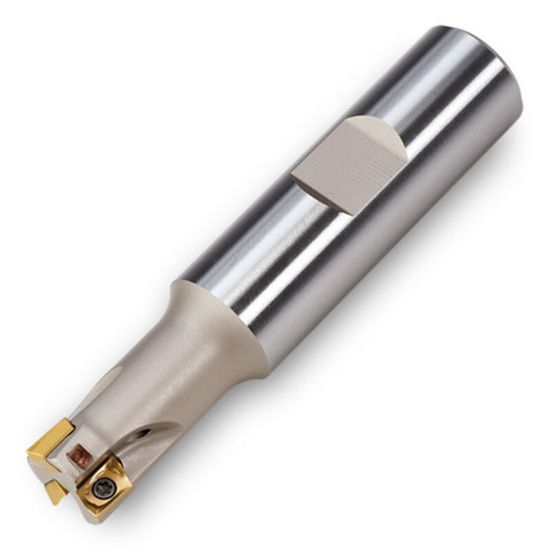

Picture of INGERSOLL 12J1D-1001784R01 Milling Cutter 90.0° 1.000 Weldon 0.7500 7 Flute 0.22 Max DOC 3.750 OAL

INGERSOLL 12J1D-1001784R01 Milling Cutter 90.0° 1.000 Weldon 0.7500 7 Flute 0.22 Max DOC 3.750 OAL

ANSI: 12J1D-1001784R01

ISO: 12J1D-1001784R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018971
Delivery date: 3-5 days
$479.73

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Made In USA No
Dimensional Specifications
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 7
Insert Size Ic 6
Depth Of Cut Max 0.2200
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Coolant Thru No
Max Ramp Angle 1.90°
