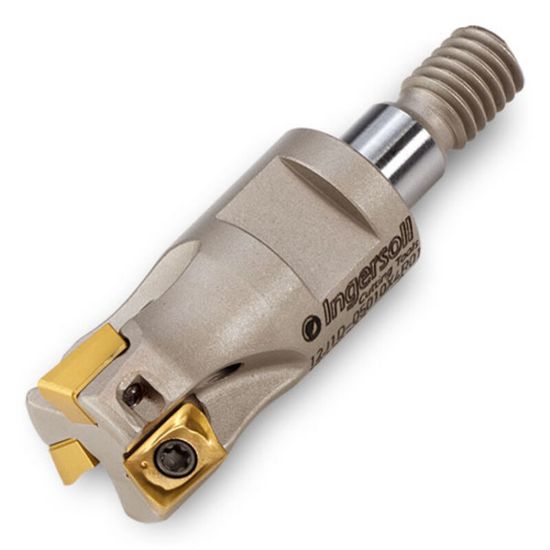

Picture of INGERSOLL 12J1D-10015X7R01 Milling Cutter 90.0° 1.000 Screw M12 7 Flute 0.22 Max DOC

INGERSOLL 12J1D-10015X7R01 Milling Cutter 90.0° 1.000 Screw M12 7 Flute 0.22 Max DOC

ANSI: 12J1D-10015X7R01

ISO: 12J1D-10015X7R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018983
Delivery date: 3-5 days
$347.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Face Milling, Pocket Milling, Side Milling
Insert Type Positive
Insert Application Roughing, Semi Finishing
Package Size 1
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Flutes/Inserts 7
Insert Size Ic 6
Cutter Dia 1.0000 25.40MM
Depth Of Cut Max 0.2200
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Max Ramp Angle 1.90°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
