  • INGERSOLL 12J1D-10007R8R01 Milling Cutter 90.0° 1.000 Cylindrical 0.3750 5 Flute 0.22 Max DOC 1.750 OAL

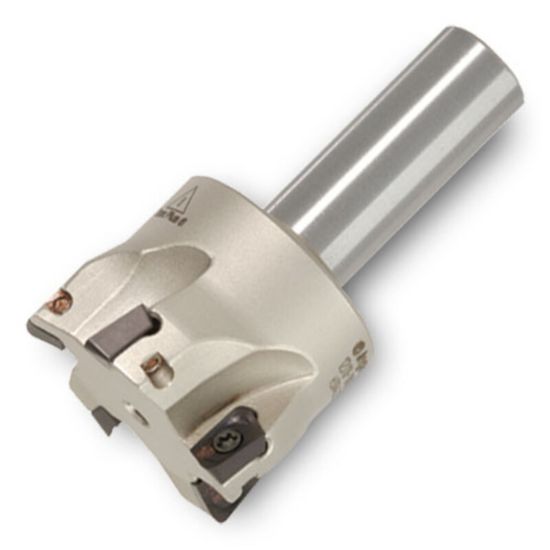

Picture of INGERSOLL 12J1D-10007R8R01 Milling Cutter 90.0° 1.000 Cylindrical 0.3750 5 Flute 0.22 Max DOC 1.750 OAL

INGERSOLL 12J1D-10007R8R01 Milling Cutter 90.0° 1.000 Cylindrical 0.3750 5 Flute 0.22 Max DOC 1.750 OAL

ANSI: 12J1D-10007R8R01

ISO: 12J1D-10007R8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3040877
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Insert Type Positive
Package Size 1
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.2200
Overall Len 1.7500 44.45MM
Insert Size Ic 6
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Flutes/Inserts 5
Cutter Dia 1.0000 25.40MM
Machine Side Connection Size 0.3750 9.53MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Inter/Extern External
Coolant Thru No
Max Ramp Angle 1.90°
