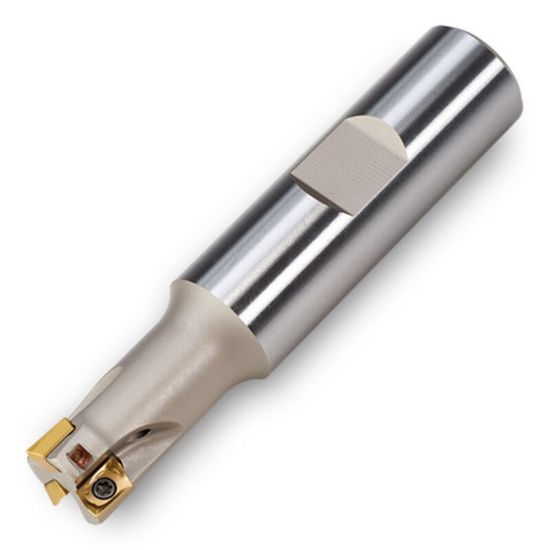

Picture of INGERSOLL 12J1D-0701684R02 Milling Cutter 90.0° 0.720 Weldon 0.7500 4 Flute 0.22 Max DOC 3.750 OAL

INGERSOLL 12J1D-0701684R02 Milling Cutter 90.0° 0.720 Weldon 0.7500 4 Flute 0.22 Max DOC 3.750 OAL

ANSI: 12J1D-0701684R02

ISO: 12J1D-0701684R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018967
Delivery date: 3-5 days
$388.27
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Face Milling, Pocket Milling, Ramp Milling, Side Milling, Slot Milling
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.2200
Cutter Dia 0.7200 18.29MM
Cut Dia Min 0.7200 18.29MM
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Insert Size Ic 6
Flutes/Inserts 4
Cutting & Machining Properties
Max Ramp Angle 2.60°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Coolant Thru No
