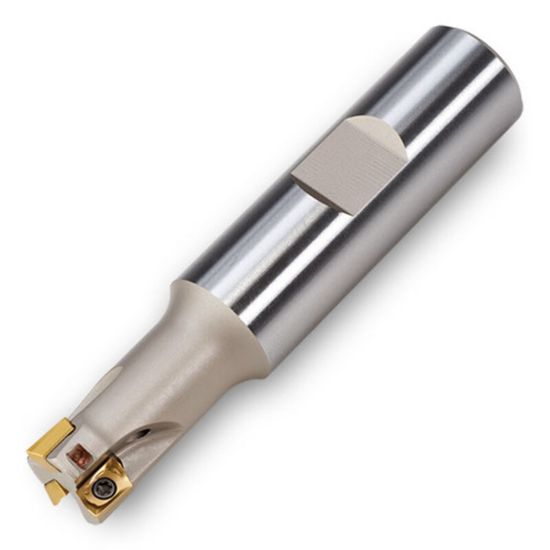

Picture of INGERSOLL 12J1D-0701684R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 5 Flute 0.22 Max DOC 3.750 OAL

INGERSOLL 12J1D-0701684R01 Milling Cutter 90.0° 0.750 Weldon 0.7500 5 Flute 0.22 Max DOC 3.750 OAL

ANSI: 12J1D-0701684R01

ISO: 12J1D-0701684R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018968
Delivery date: 3-5 days
$388.27

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Slot Milling, Ramp Milling, Side Milling, Pocket Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Insert Size Ic 6
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Depth Of Cut Max 0.2200
Tool Material Steel
Flutes/Inserts 5
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Max Ramp Angle 2.60°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Coolant Thru No
