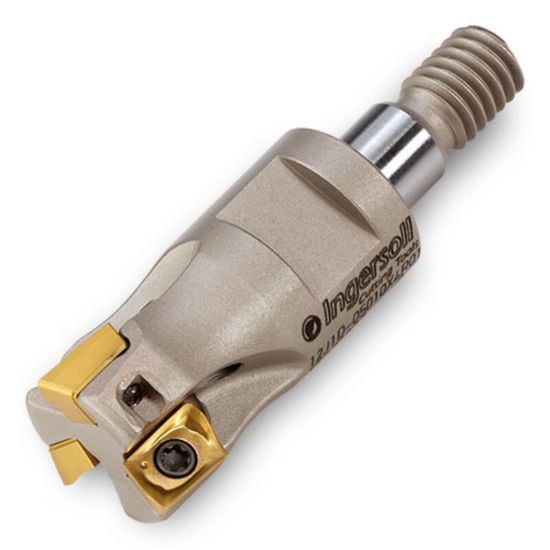

Picture of INGERSOLL 12J1D-07015X6R01 Milling Cutter 90.0° 0.750 Screw M10 5 Flute 0.22 Max DOC

INGERSOLL 12J1D-07015X6R01 Milling Cutter 90.0° 0.750 Screw M10 5 Flute 0.22 Max DOC

ANSI: 12J1D-07015X6R01

ISO: 12J1D-07015X6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018982
Delivery date: 3-5 days
$311.73
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Ramp Milling, Slot Milling, Side Milling, Face Milling, Pocket Milling
Insert/Tool Tool
Package Size 1
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 6
Depth Of Cut Max 0.2200
Machine Side Connection Type Screw On
Cutter Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 5
Machine Side Connection Size M10
Cut Dia Min 0.7500 19.05MM - 3/4
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Max Ramp Angle 2.60°
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
