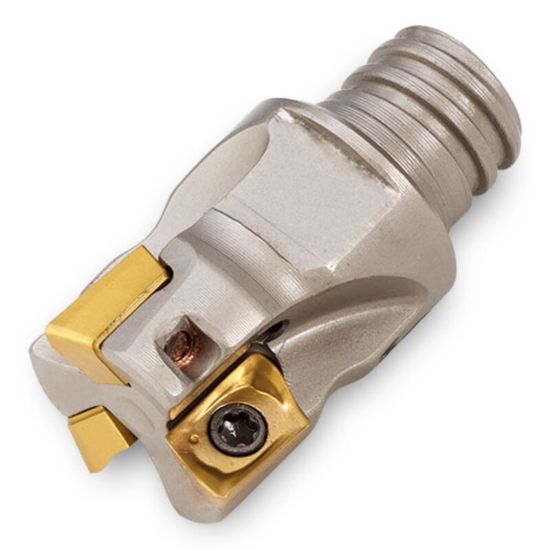

Picture of INGERSOLL 12J1D-07010TSR01 Milling Cutter 90.0° 0.750 T12 5 Flute Coolant 0.22 Max DOC

INGERSOLL 12J1D-07010TSR01 Milling Cutter 90.0° 0.750 T12 5 Flute Coolant 0.22 Max DOC

ANSI: 12J1D-07010TSR01

ISO: 12J1D-07010TSR01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3040807
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Ramp Milling, Slot Milling, Face Milling, Side Milling
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Tool Material Steel
Depth Of Cut Max 0.2200
Machine Side Connection Type Screw On
Cut Dia Min 0.7500 19.05MM - 3/4
Cutter Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 5
Machine Side Connection Size T12
Insert Size Ic 6
Cutting & Machining Properties
Max Ramp Angle 2.60°
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Insert Style AO
