  • INGERSOLL 12J1D-06014S6R01 Milling Cutter 90.0° 0.620 Cylindrical 0.6250 3 Flute Coolant 0.22 Max DOC 6.000 OAL

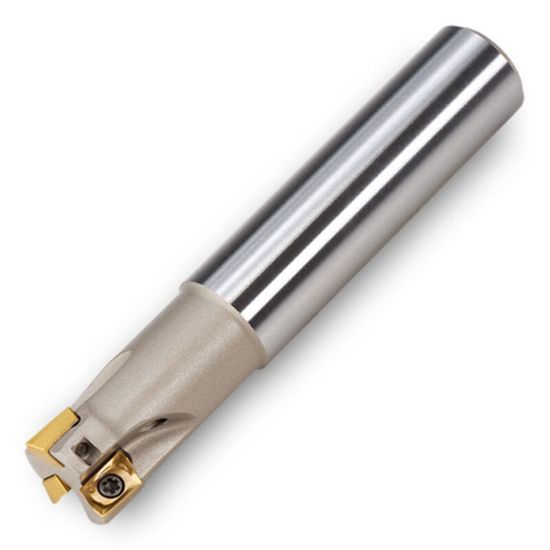

Picture of INGERSOLL 12J1D-06014S6R01 Milling Cutter 90.0° 0.620 Cylindrical 0.6250 3 Flute Coolant 0.22 Max DOC 6.000 OAL

INGERSOLL 12J1D-06014S6R01 Milling Cutter 90.0° 0.620 Cylindrical 0.6250 3 Flute Coolant 0.22 Max DOC 6.000 OAL

ANSI: 12J1D-06014S6R01

ISO: 12J1D-06014S6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018966
Delivery date: 3-5 days
$318.27
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Ramp Milling, Slot Milling, Side Milling, Face Milling
Made In USA No
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Insert Type Positive
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.2200
Flutes/Inserts 3
Cutter Dia 0.6200 15.75MM
Overall Len 6.0000 152.40MM
Insert Size Ic 6
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cut Dia Min 0.6200 15.75MM
Machine Side Connection Size 0.6250 15.88MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Style AO
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
