  • INGERSOLL 12J1D-0601479R01 Milling Cutter 90.0° 0.620 Cylindrical 0.6250 4 Flute 0.22 Max DOC 3.500 OAL

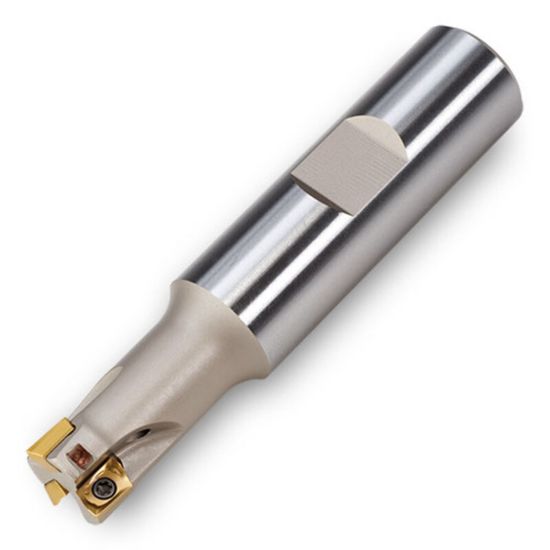

Picture of INGERSOLL 12J1D-0601479R01 Milling Cutter 90.0° 0.620 Cylindrical 0.6250 4 Flute 0.22 Max DOC 3.500 OAL

INGERSOLL 12J1D-0601479R01 Milling Cutter 90.0° 0.620 Cylindrical 0.6250 4 Flute 0.22 Max DOC 3.500 OAL

ANSI: 12J1D-0601479R01

ISO: 12J1D-0601479R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018965
Delivery date: 3-5 days
$353.73

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Ramp Milling, Slot Milling, Pocket Milling
Package Size 1
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.6200 15.75MM
Cut Dia Min 0.6200 15.75MM
Machine Side Connection Size 0.6250 15.88MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Depth Of Cut Max 0.2200
Overall Len 3.5000 88.90MM
Insert Size Ic 6
Flutes/Inserts 4
Tool Material Steel
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Style AO
Max Ramp Angle 4.00°
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
