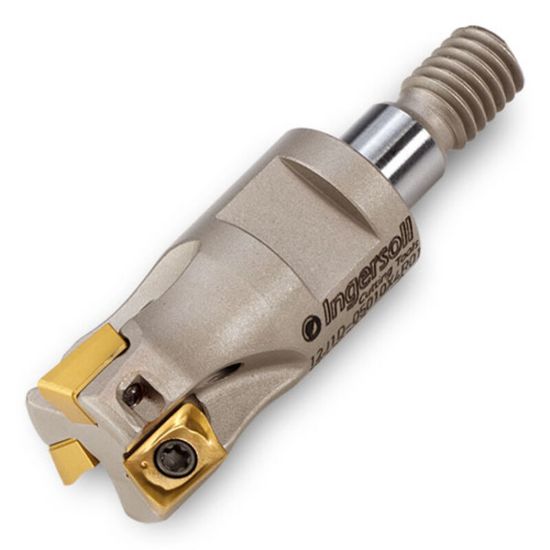

Picture of INGERSOLL 12J1D-06010X5R01 Milling Cutter 90.0° 0.620 Screw M08 4 Flute Coolant 0.22 Max DOC

INGERSOLL 12J1D-06010X5R01 Milling Cutter 90.0° 0.620 Screw M08 4 Flute Coolant 0.22 Max DOC

ANSI: 12J1D-06010X5R01

ISO: 12J1D-06010X5R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018978
Delivery date: 3-5 days
$284.67
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Cut Dia Min 0.6200 15.75MM
Machine Side Connection Size M08
Depth Of Cut Max 0.2200
Machine Side Connection Type Screw On
Insert Size Ic 6
Flutes/Inserts 4
Cutter Dia 0.6200 15.75MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Coolant Thru Yes
Max Ramp Angle 4.00°
