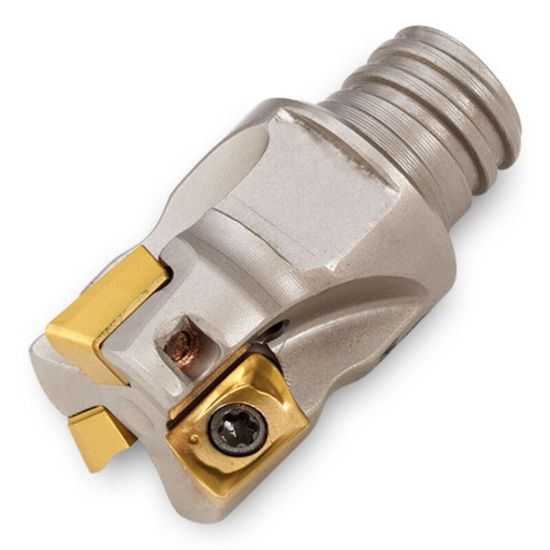

Picture of INGERSOLL 12J1D-06008TRR01 Milling Cutter 90.0° 0.625 T10 4 Flute Coolant 0.22 Max DOC

INGERSOLL 12J1D-06008TRR01 Milling Cutter 90.0° 0.625 T10 4 Flute Coolant 0.22 Max DOC

ANSI: 12J1D-06008TRR01

ISO: 12J1D-06008TRR01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3040805
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Insert Type Positive
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 0.6250 15.88MM - 5/8
Depth Of Cut Max 0.2200
Cut Dia Min 0.6250 15.88MM - 5/8
Machine Side Connection Type Screw On
Insert Size Ic 6
Machine Side Connection Size T10
Flutes/Inserts 4
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 4.00°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
