  • INGERSOLL 12J1D-05011S4R01 Milling Cutter 90.0° 0.500 Cylindrical 0.5000 2 Flute Coolant 0.22 Max DOC 3.000 OAL

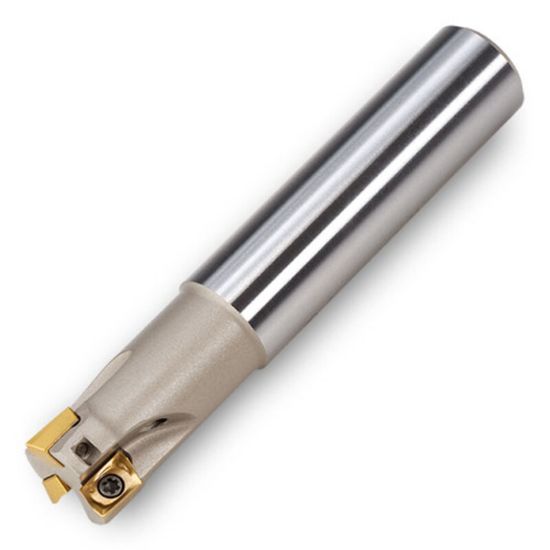

Picture of INGERSOLL 12J1D-05011S4R01 Milling Cutter 90.0° 0.500 Cylindrical 0.5000 2 Flute Coolant 0.22 Max DOC 3.000 OAL

INGERSOLL 12J1D-05011S4R01 Milling Cutter 90.0° 0.500 Cylindrical 0.5000 2 Flute Coolant 0.22 Max DOC 3.000 OAL

ANSI: 12J1D-05011S4R01

ISO: 12J1D-05011S4R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3018963
Delivery date: 3-5 days
$257.60
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Slot Milling, Ramp Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 0.5000 12.70MM - 1/2
Tool Material Steel
Insert Size Ic 6
Flutes/Inserts 2
Depth Of Cut Max 0.2200
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.5000 12.70MM
Overall Len 3.0000 76.20MM
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Max Ramp Angle 6.00°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
